API 6A Spacer Spool and Drilling Spool

API 6A Spacer Spool

API 6A Spacer Spool, Spool, Extension Spool, Riser Spool
EMAIL INQUIRY

API 6A Spacer Spool

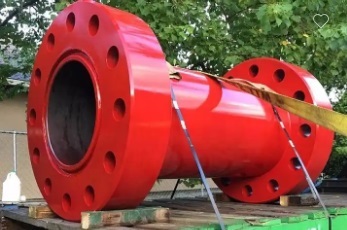

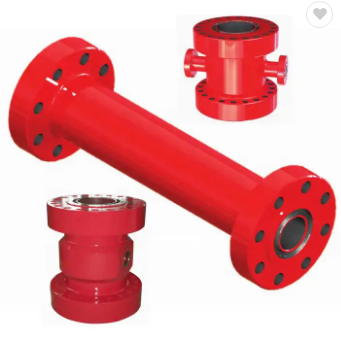

Product pictures of API 6A Spacer Spool

API 6A Standard spacer spool and drilling spool
1. Standard: API 6A
2. Working Pressure: 2000PSI-20000PSI
3. Size: 3 1/8"--26 3/4"

API 6A Spacer Spool.jpg

Spacer spool, in accordance with API 6A, have end connectors of the same size, rated working pressure and design. Spacer spool is wellhead sections which have no provision for suspension of tubular members and which may have no provision for sealing of tubular members

Specifications of API 6A Spacer Spool

Description	L (mm)
3 1/8" X 5M To 3 1/8" X 5M	1092
4 1/16" X 5M To 4 1/16" X 5M	275
4 1/16" X 10M To 4 1/16" X 10M	1588
4 1/16" X 15M To 4 1/16" X 15M	614
5 1/8" X 5M To 5 1/8" X 5M	287
7 1/16" X 5M To 7 1/16" X 5M	700
9" X 5M To 9" X 5M	5200
11" X 5M To 11" X 5M	3048
13 5/8" X 3M To 13 5/8" X 3M	3048
13 5/8" X 5M To 13 5/8" X 5M	635
13 5/8" X 10M To 13 5/8" X 10M	650
21 1/4" X 2M To 21 1/4" X 2M	1400
26 3/4" X 3M To 26 3/4" X 3M	2440
